New PS-20 High-Voltage Power Supply Kit
Product Description

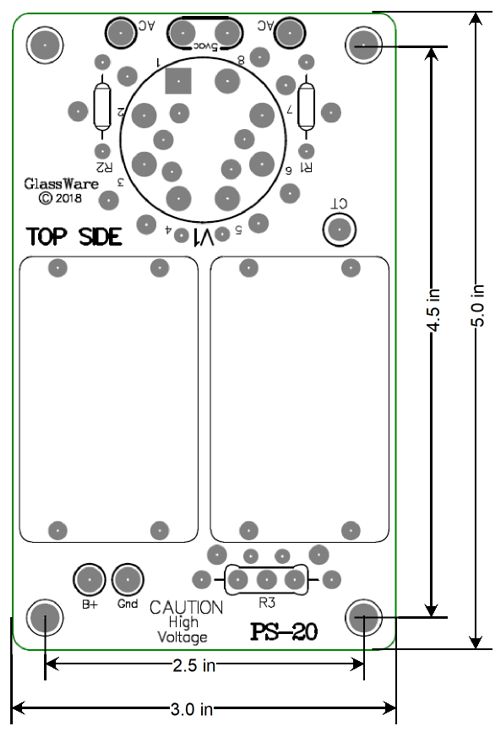

This power supply is super simple: two 50µF/550V polypropylene capacitors, with a power RC resistor in between, and a tube rectifier. This new power supply is quite similar to the old PS-5. It can be used with secondary voltage up to 375Vac (750Vac CT) and can use either a 5AR4 or 5R4 or 5Y3 or 274B rectifier.
If you plan on building a tube-based power amplifier or robust line-stage amplifier, and if you desire tube rectification, this is the the power supply kit to get.
Kit includes two 50uF/550V polypropylene capacitors and octal tube socket and four standoff sets and a variety of RC resistors. The JJ 5Y3 tube rectifier is optional.
If you plan on building a tube-based power amplifier or robust line-stage amplifier, and if you desire tube rectification, this is the the power supply kit to get.
Kit includes two 50uF/550V polypropylene capacitors and octal tube socket and four standoff sets and a variety of RC resistors. The JJ 5Y3 tube rectifier is optional.
